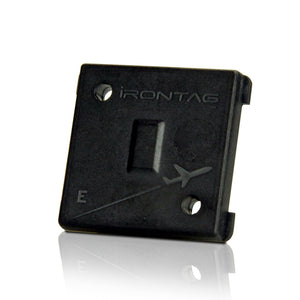

HID Iron Tag 206 MX 8K - 869MHz Sticker
Excludes VAT
IronTag® UHF transponders deliver exceptional performance on metal surfaces, and they are built to withstand vibration, shock, chemical exposure and fluctuating temperatures
Description
IronTag® UHF transponders deliver exceptional performance on metal surfaces, and they are built to withstand vibration, shock, chemical exposure and fluctuating temperatures. The transponders enable radio frequency identification (RFID) tagging of metal equipment and components that are subject to severe conditions.
Designed for tracking aircraft parts, IronTag devices tolerate the harsh conditions of vehicle and equipment manufacturing, processing and operation. They handle temperatures from -40° F (-40° C) to 428° F (220° C), are waterproof, resist high-pressure/high-temperature washing and withstand exposure to fuels, oils, salt water and ultraviolet light. They are resistant to pressure (<100 bar), vibration and steady flame for short periods. IronTag 206 units deliver the highest flame resistance rating available.
Features:
- Operating frequency - 869 MHz (EU)
- Chip type - Monza X
- User memory - 8192 bit
- Memory - 128 bit EPC, 96 bit TID
- Anti-collision - Yes
- Reading distance - Up to 8.2 ft
- Dimensions - 1.32 x 1.22 x 0.24 in (33.7 x 31.1 x 6.1 mm)
- Mounting method - Clamp, glue, screw; optional sticker
- Screw fixation hole - Ø 0.13 in (3.3 mm)
- Affixes to - Metal surfaces
- Housing material - PPA, Polyphthalamide, (ISO PA6T/6I)
- Colour - Black
- Weight - 9.9g
Additional Information
Weight
10 g
Application Material
PPA
Frequency
EU 868 MHz
Company
HID
